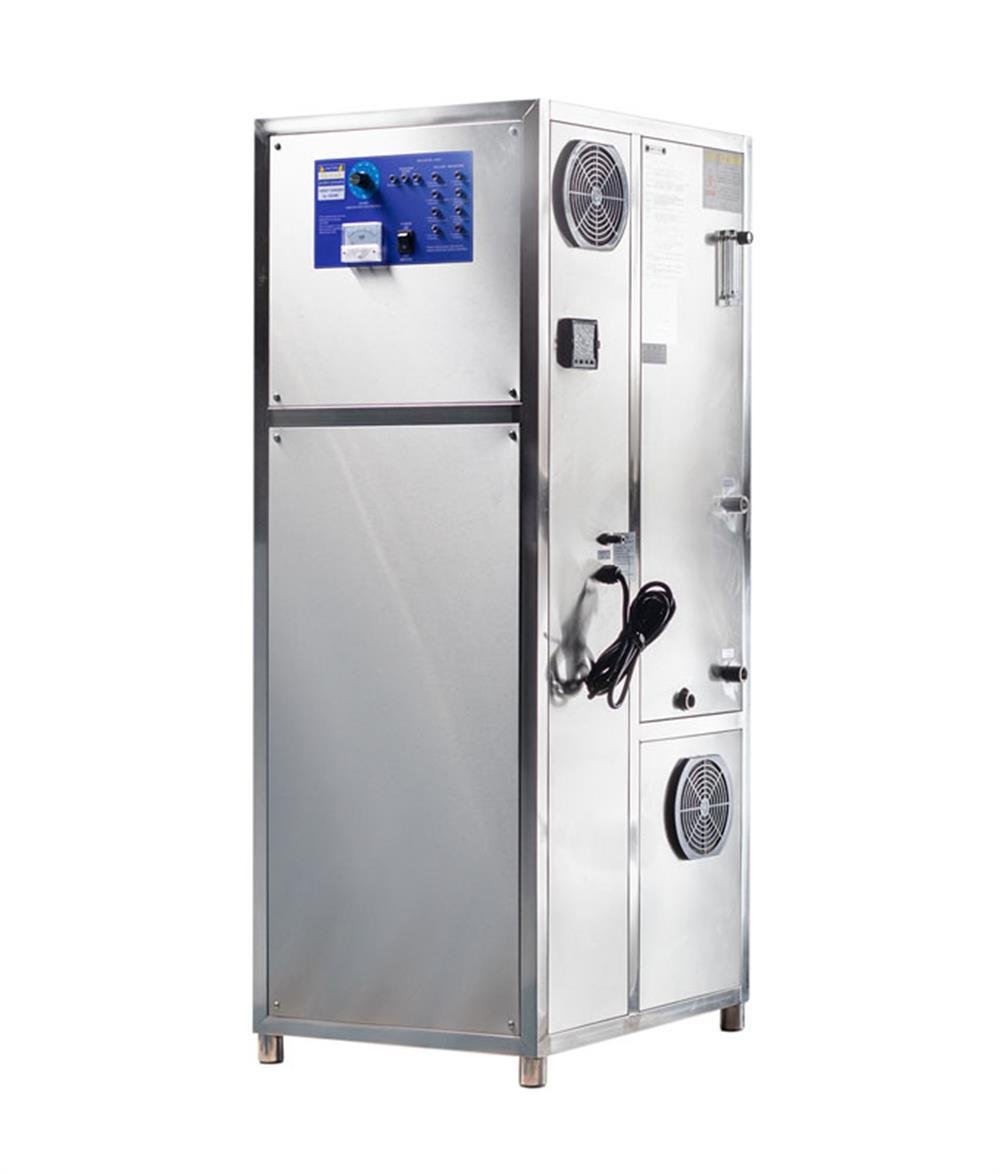

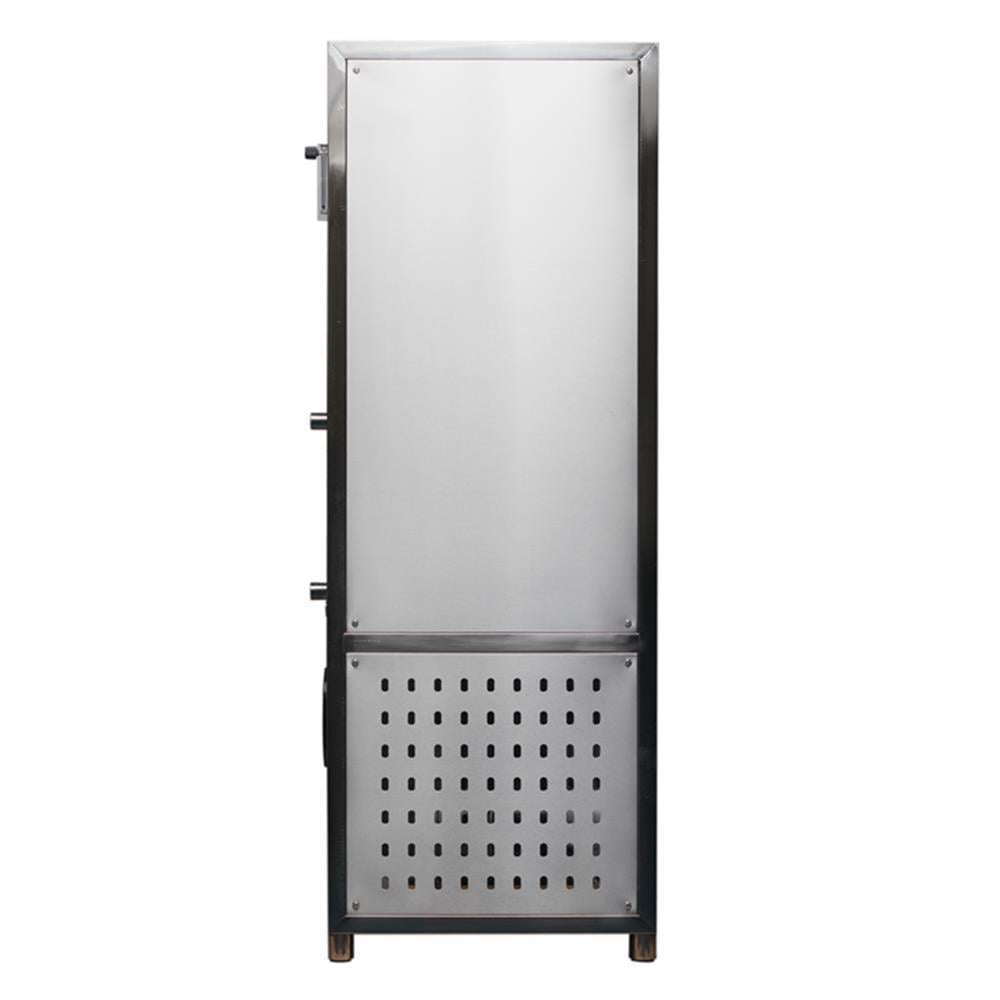

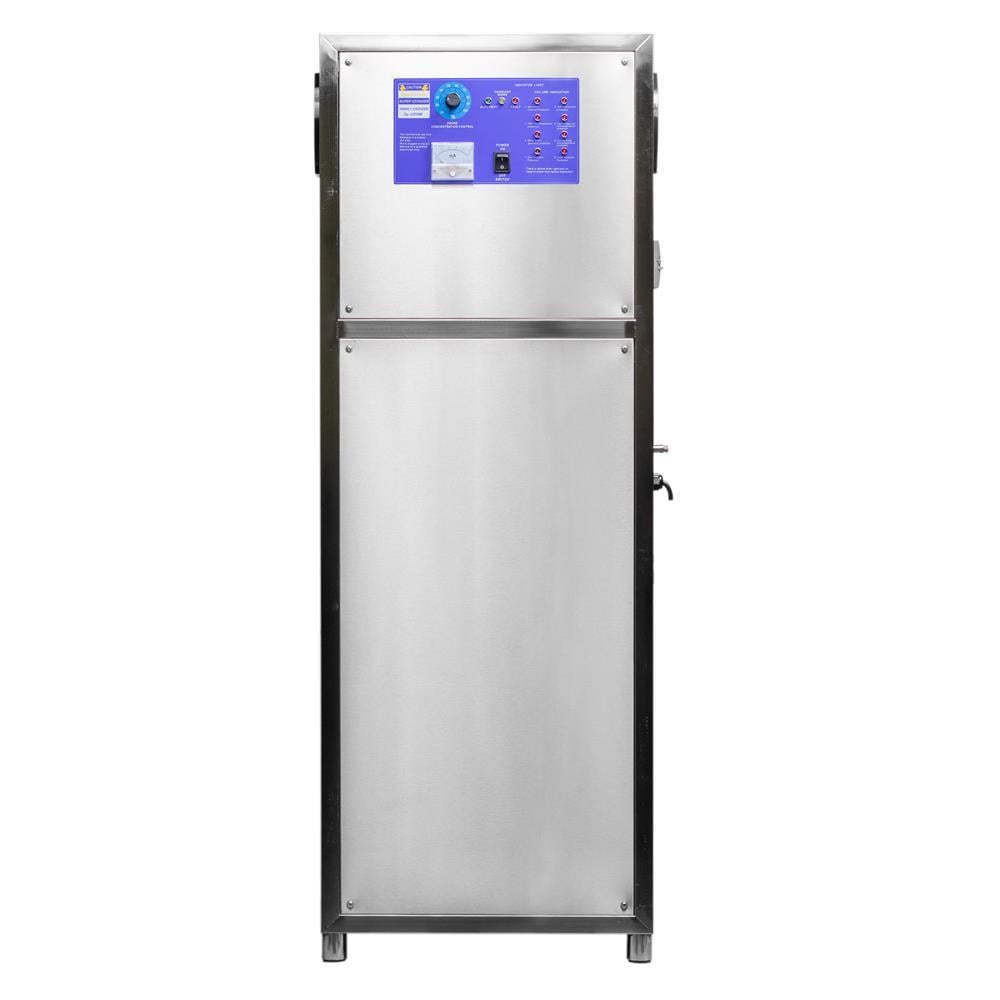

BNP Entegre Ozon Jeneratörü 80 gram/saat

Product Detail:

The seires of product utilize oxygen from internal oxygen generator as gas source and high concentration ozone is generated by ozone generaion part.The product has integrated oil-free air compressor and filtering system thus ozone is produced  by just power on it.The products use heat-resistant HQG non-glass structure discharge unit(BNP patent),the structure is extremely stable,has long lifespan and high discharge efficiency and not easily damaged in case of back flow water.

Product Features:

1. This seires of products use American zeolite molecular sieve adsorbent,separating oxygen from nitrogen in the air using pressure swing adsorption(PSA) pricinple,filtering other substances in the air to obtain a high concentation oxygen in line with medical oxygen standards.
2. Multi-point malfuction monitoring,main board temperature detection,high voltage transformer temperature detection,cooling water temperature detection,PSA input air temperature detection,backflow water detection.The equipment stops opereating and the corresponding fault indicator on the control panel lights up when a fault is detected.
3. Standard 4~20mA signal control.
4. The whole gas circuits work in low pressure which makes it safe and reliable.
5. Air source input with no additive required and lower power consumption which ensures lower total cost.
6. Two oxygen generation units work alternatively and automatically.

Component:

1.PSA oxygen generation units(American UOP modular sieve)
2.Heat exchanger
3.Solenoid valve(CKD and SMC from Japan, AIRTAC and SNS from Taiwan)
4.Strong ozone generator unit
5.Oil free air compressor
6.Gas water separator
7.Intelligent control system
8.Ammeter
9.Taiwan 150 type fan
10. Gas flow meter
11.Ozone regulation knob etc
12.Temperature controller

BNP Integrated Ozone Generator SOZ-YOW-60G
High concentration ozone production with Oil Free Air Compressor, Special Filter System, Air Dryer and PSA Oxygen Generator.

Made of Oxygen
Integrated Air Dryer
Integrated PSA Oxygen Generator
Integrated Oil Free Dry Air Compressor
Patented Dehydroxylation Quartz Glass Tubes for Long Life Ozone Production
Advanced Large IGBT Power Supply
World Quality Equipment

Capacity: 80 grams/hour
Water Cooling (0,1-0,2 m3 / hour debili, < 20 Celsius water w/o oxidant)
Adjustable Ozone Production
Stainless Steel Cabinet
2,100 W Power
220/110V 50-60 Hz
50 * 60 * 140 (cm) dimension
8-10 lt/minute Oxygen Production
95 kg weight
